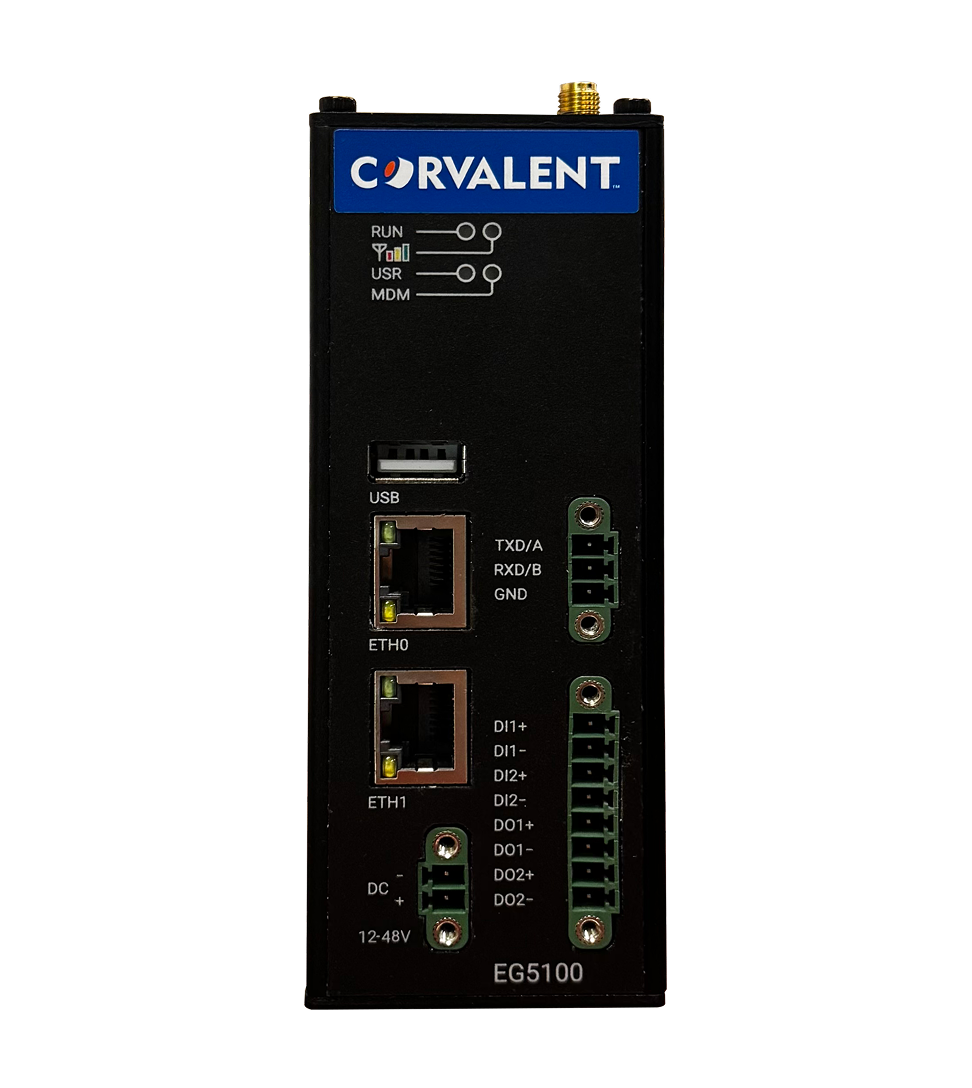

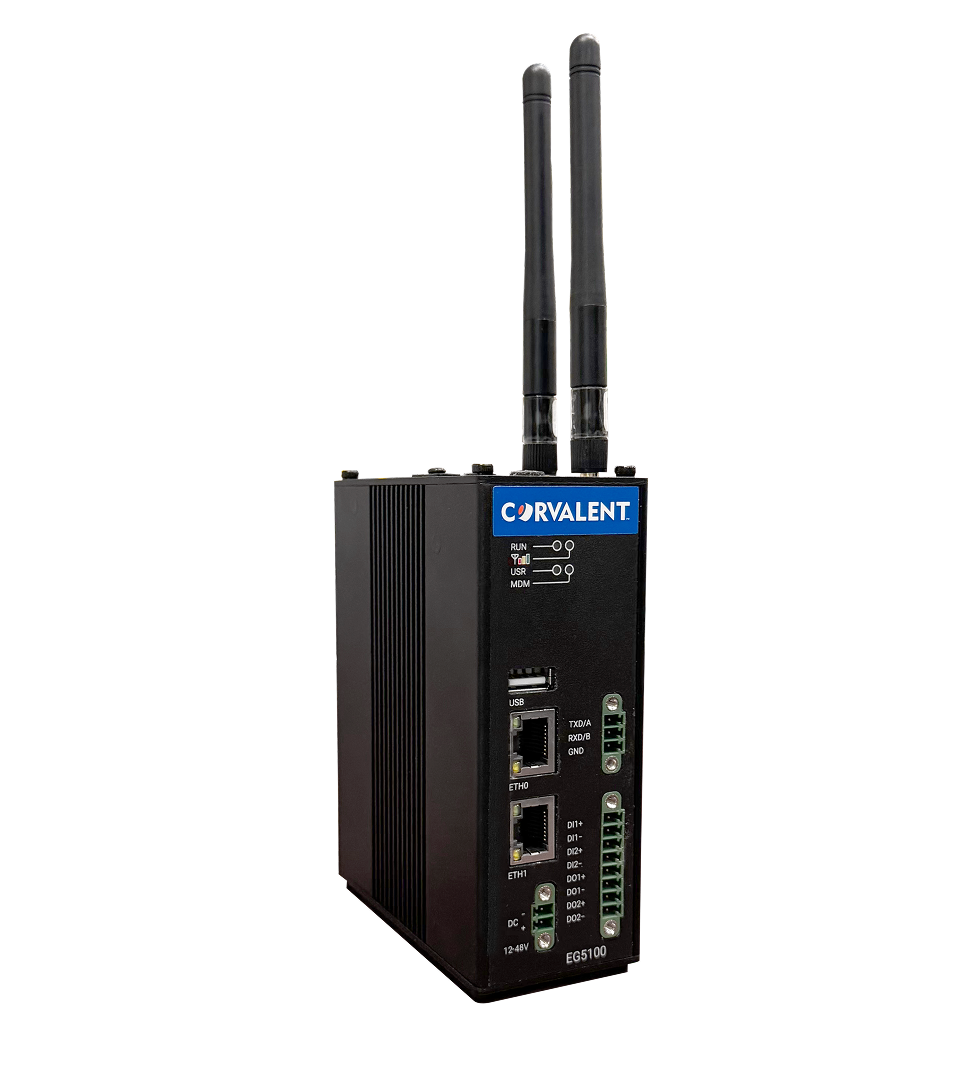

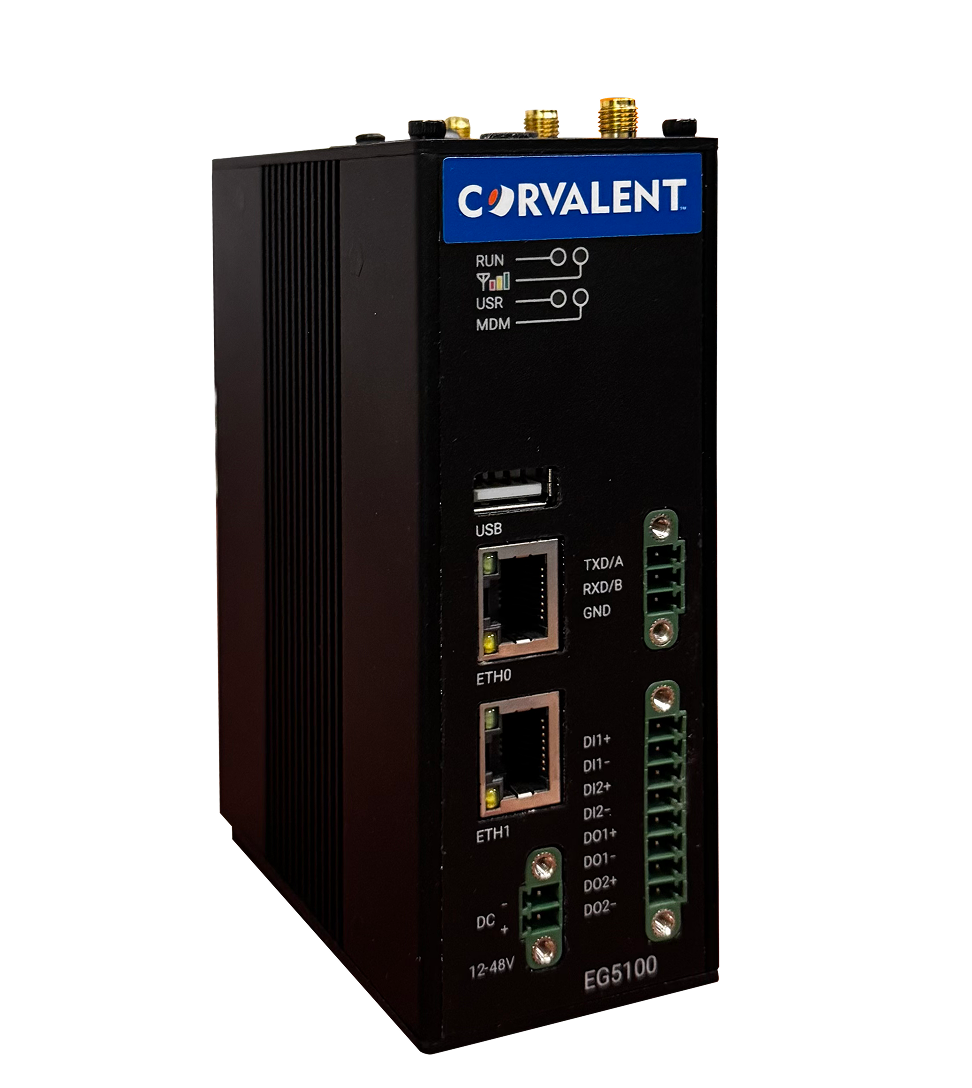

The Corvalent gateway is a rugged, industrial-grade edge gateway that combines global 4G/3G/2G cellular connectivity with powerful ARMv7 edge processing. Running Debian 11 (Bullseye) and supporting Raspberry Pi–compatible applications, it also features Docker for fast, containerized deployments in demanding environments.
Equipped with a 792 MHz Cortex-A7 CPU, the gateway, delivers advanced enterprise features such as VPN/IPsec security, smart roaming, and SMS-based remote management. Designed for mission-critical IoT applications, it unifies cellular routing, cybersecurity, and edge analytics in a single compact platform—reducing complexity and accelerating deployment.
| Category | Specification |
|---|---|
| Key Features | Ultra Low Power, Small footprint, Plug-and-Play |
| Form Factor & Environment | Dimensions: 49 x 105 x 128 mm |
| Operating temperature: -40 ~ +70 °C | |
| Processor & Graphics | CPU: core ARM Cortex-A72 (64-bit), 792MHz |
| Memory | RAM: 1GB DDR3 |
| Ethernet | 2 x RJ45, 10/100 Mbps, LAN or WAN |
| USB | Wi-Fi: Dual-band 802.11ac (2.4 GHz and 5.0 GHz) |
| Bluetooth: 5.2 | |
| Built-in Wireless DigiMesh 900MHz option for North & South America 868MHz option for Europe 2.4GHz option Worldwide (reduced range to 1-Mile) |
|
| I/O Interfaces | 2 x RS-232/RS-485 (software configurable) Or 1 x RS-232/RS-485 (software configurable) + 1 x CAN |
| 1 × USB 2.0 | |
| 2 x DI + 2 x DO – 6-pin 3.5 mm terminal block with lock | |
| Operating System | Debian 11 (Bullseye) Node-Red Pre instalkled and running as a service |
| Power | 12 V DC/1.5 A power adapter (included) |
