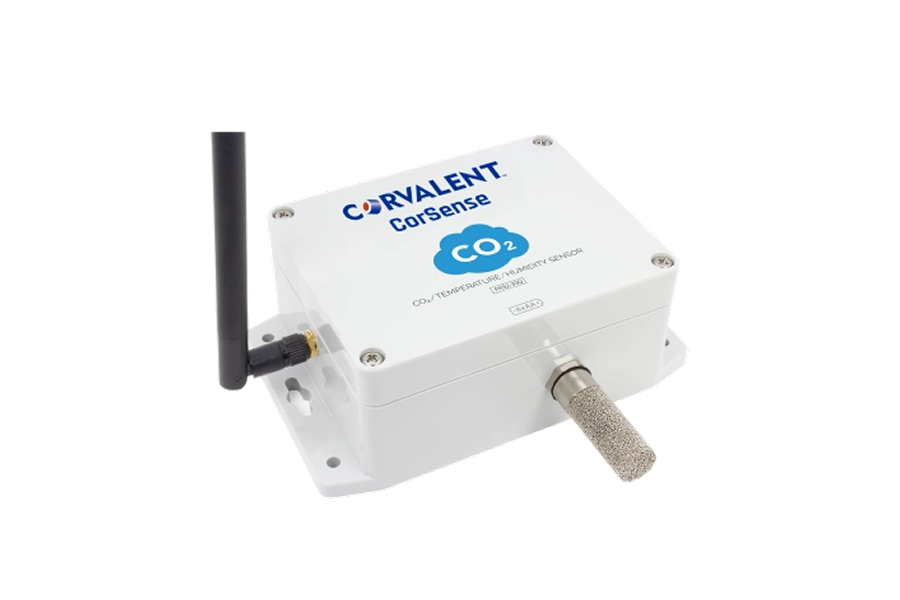

CorSense CO2, Temperature & Humidity Sensor

Technical Specifications

Long Range Industrial IoT Wireless CO2 Temperature Humidity Sensor for Air Quality Monitoring with an integrated temperature humidity sensor, boasting up to a 2-mile range using a wireless mesh networking architecture. This wireless IoT CO2 Temperature Humidity Sensor transmits highly accurate CO2 concentration, temperature, and humidity samples at user-defined intervals. This sensor is also C1D2 certified – Explosion proof.

The technology used for IR detection enables highly accurate carbon dioxide measurement at a competitive price. Along with the measurement technology for CO2 detection, a best-in-class humidity and temperature sensor is also integrated into the same sensor module. Ambient humidity and temperature can be outputted using the sensors’s algorithm through modeling and compensating of external heat sources without the requirement for any additional components.

Thanks to the dual-channel principle for the measurement of carbon dioxide concentration, the sensor compensates for long-term drifts automatically by design. The very small module height allows easy integration into different applications.
The on-board temperature sensor is rated for -25°C to 85°C or -13°F to 185°F, and the humidity sensor is rated for 0 to 90% RH (non-condensing). Powered by just 6 AA batteries and an operational lifetime of 300,000 wireless transmissions, a 5-year battery life can be expected depending on environmental conditions and the data transmission interval. An external power supply is supported by a special request.

Part Number: SY-SNS-NPR52-33Q

Sensor Highlights

  • Industrial-grade CO2 measurement range 0–2,000 ppm
  • CO2 measurement accuracy ± (60 ppm ++5% of reading) (25 °C, 400 – 2,000 ppm)
  • Repeatability 10 ppm and temperature stability
  • Temperature compensation of CO2 sensor signal
  • Fully calibrated and linearized
  • Superior long-term stability with built-in reference channel
  • Industrial-grade sensor with 0-90% RH / -25°C [-13°F] to 85°C [185°F]
  • Resolution 0.4% RH/0.1°C accuracy 6% RH/0.8°C
  • Includes battery level with every transmission
  • Validates and retries lost communication packets
  • Encrypted wireless communications up to 2-mile range
  • Send IoT data to PCs, Amazon AWS, Microsoft Azure, and MQTT servers
