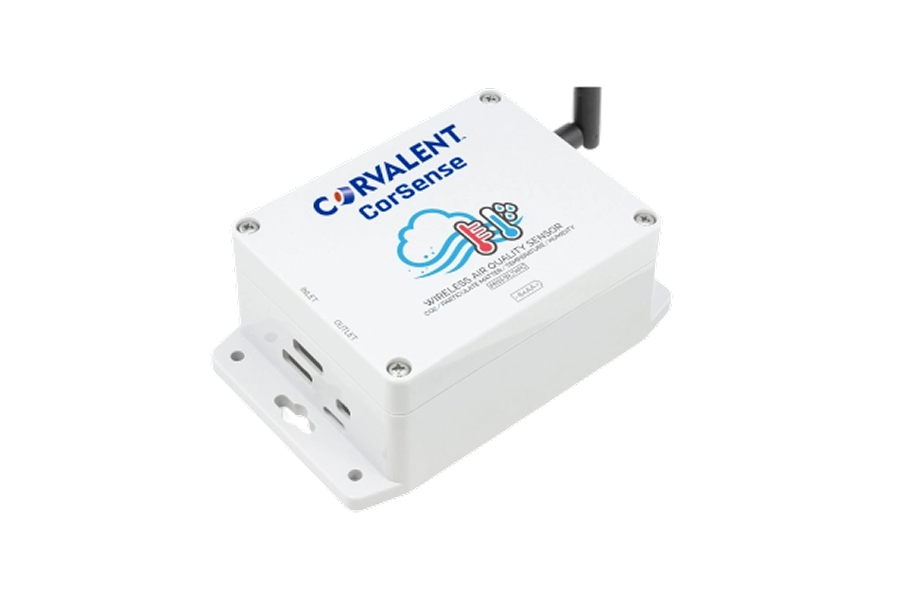

CorSense CO2, Temperature, Humidity & Particulate Matter Sensor

Technical Specifications

Introducing a Long Range Industrial IoT Wireless CO2 Temperature Humidity Particulate Matter Sensor for Air Quality Monitoring with an integrated temperature humidity sensor. This device boasts up to a 2-mile range using a wireless mesh networking architecture. Incorporating the Particulate sensor, CO2 sensor, and temperature humidity sensors, this wireless IoT sensor transmits highly accurate CO2 concentration, particle size, mass concentration, temperature, and humidity samples at user-defined intervals. This sensor is also C1D2 certified – Explosion proof.

The Technology used for IR detection enables highly accurate carbon dioxide measurements at a competitive price. Along with measurement technology for CO2 detection, a best-in-class humidity and temperature sensor is also integrated on the same sensor module. Ambient humidity and temperature can be outputted using the sensor’s algorithm through modeling and compensating of external heat sources without the requirement for any additional components.

Thanks to the dual-channel principle for the measurement of carbon dioxide concentration, the sensor compensates for long-term drifts automatically by design. The very small module height allows easy integration into different applications.

Part Number: SY-SNS-NPR55-59-THPC-PWR

Sensor Highlights

  • Industrial-grade sensor mass concentration range 0-1000 μg/m^3
  • Mass concentration resolution of 1 μg/m^3
  • Mass concentration size range PM1.0, PM2.5, PM4.0, PM10.0
  • Number concentration range 0 to 3000 1/cm^3
  • Number concentration size range  PM0.5, PM1.0, PM2.5, PM4.0, PM10.0
  • Industrial grade CO2 measurement range 0 – 2,000 ppm
  • CO2 measurement accuracy ± (60 ppm ++5% of reading) (25 °C, 400 – 2,000 ppm)
  • Temperature compensation of CO2 sensor signal
  • Fully calibrated and linearized
  • Unique long-term stability of up to 8 years
  • Laser-based scattering principle and advanced algorithms
  • Inbuilt auto-cleaning feature after every 256 transmissions
  • Industrial-grade sensor with 0-90% RH / -25°C [-13°F] to 85°C [185°F])
  • Resolution 0.4% RH/0.1°C accuracy 6% RH/0.8°C
  • Encrypted wireless communications up to 2 mile range
  • Send IoT data to PCs, Amazon AWS, Microsoft Azure, and MQTT servers
