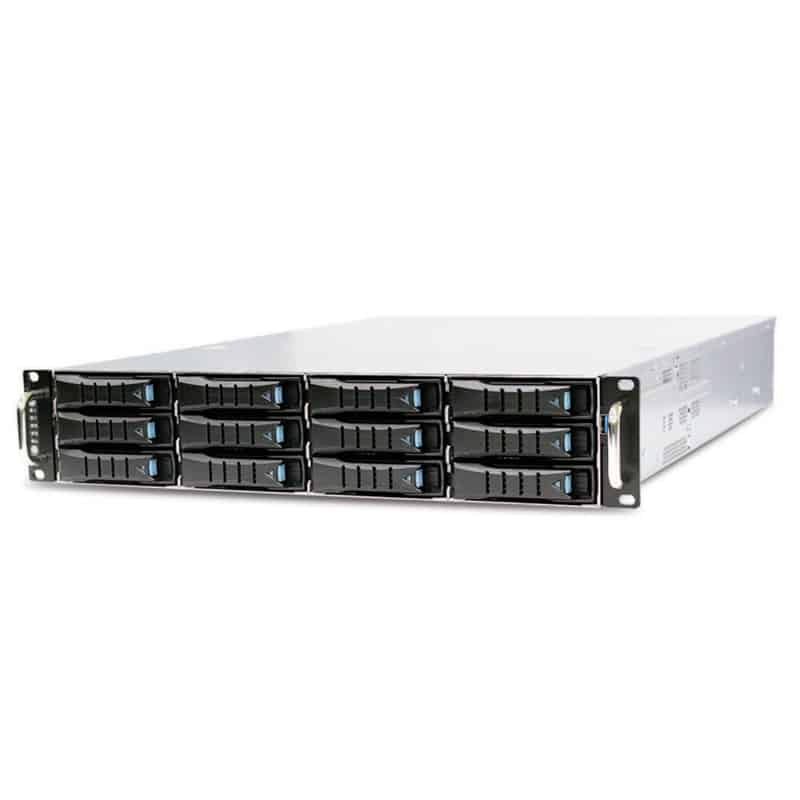

Dual Xeon® Skylake 2U Industrial High-Performance Server
Corvalent industrial servers are based on Intel® Dual Xeon® processors and the latest Skylake technology. Industrial servers provide speed, reliability, and high performance to help any application keep pace with a faster world. Our high-end customizable systems are backed by our 5+ year consistent supply guarantee. Look no further for true performance supporting Skylake Xeon SP 3100(Bronze) – 8100(Platinum) families. Featuring up to 1.5 Terabytes of DDR4 max memory speed 2666 MHz (ECC or non ECC memory), 24 cores (48 with Hyper-Threading Technology) and Intel® Turbo Boost Technology 2.0. Ideal for large simulations and other graphic intensive applications including: Machine Vision, Medical Imaging, 3D Rendering, Military and more.
Form Factor | 2U Rackmount Chassis |
---|---|
Dimensions | 3.5″ H x 19″ W x 27″ L (88mm H x 483mm W x 686mm L) |
Processor | Dual Socket Intel® Xeon® SP 3100(Bronze) – 8100(Platinum) Processor families. 12 long-life embedded processors available |
Chipset | Intel® C622 (Lewisburg) |
Memory | 16 x DIMM slots (up to 1.5TB of 2666 MHz DDR4 memory) support Intel® Apache Pass NGNVM |
Network Controller | Dedicated 10/100/1000 management port. |
Dual 1GbE Ethernet ports, additional ports 10GbE and fiber options available upon request | |
Expansion Slot | 3x PCIe Gen3 x16 |
Virtualization Support | Yes |
Disk Drive Bay | 2 x SATA DOM port OR 2x SATA M.2 port, Standard 12 bays with 2.5″ and 3.5″ drive support, SAS3 – 12Gb/s hot-plug drive (Up to 144TB of JBOD, or 132TB of RAID5) |
USB 3.0 | 3 |
VGA | 1 |
COM | 1 |
System Management | IPMI 2.0 compliant |
TPM | Option: 1.2 |
Power Supply | 650W 1+1 Redundant with PMBus |
Temperature | Operating: 5°C to 35°C, Non-Operating: 0°C to 50°C |
Humidity | 5% ~ 95% non-condensing |
Medical Imaging |
---|
Simulation Applications |
Research Labs |
Military & Defense |
Video Processing |
Test & Measurement |
3D Rendering |
Security & Surveillance |
Trusted in design and manufacturing of high quality industrial computing and IoT solutions for critical applications, from medical equipment to military system deployments.
