CorSense Predictive Maintenance Module Sensor
This C1D2-certified predictive maintenance sensor monitors vibration, current, and temperature with FFT and raw data capabilities and up to a 2-mile wireless range.
Technical Specifications
The Industrial IoT Wireless Predictive Maintenance Sensor boasts up to a two-mile range using a wireless mesh networking architecture. The Predictive Maintenance Sensors are also known as Condition-based Based Monitoring Sensors. This IoT Preventative Monitoring Sensor consists of four of our most popular sensors in a single package to help control costs in most predictive maintenance applications. This sensor includes a vibration sensor, a thermocouple, a 100 Amp AC split core current sensor, and a machine body temperature sensor. This sensor is also C1D2 certified – Explosion proof.

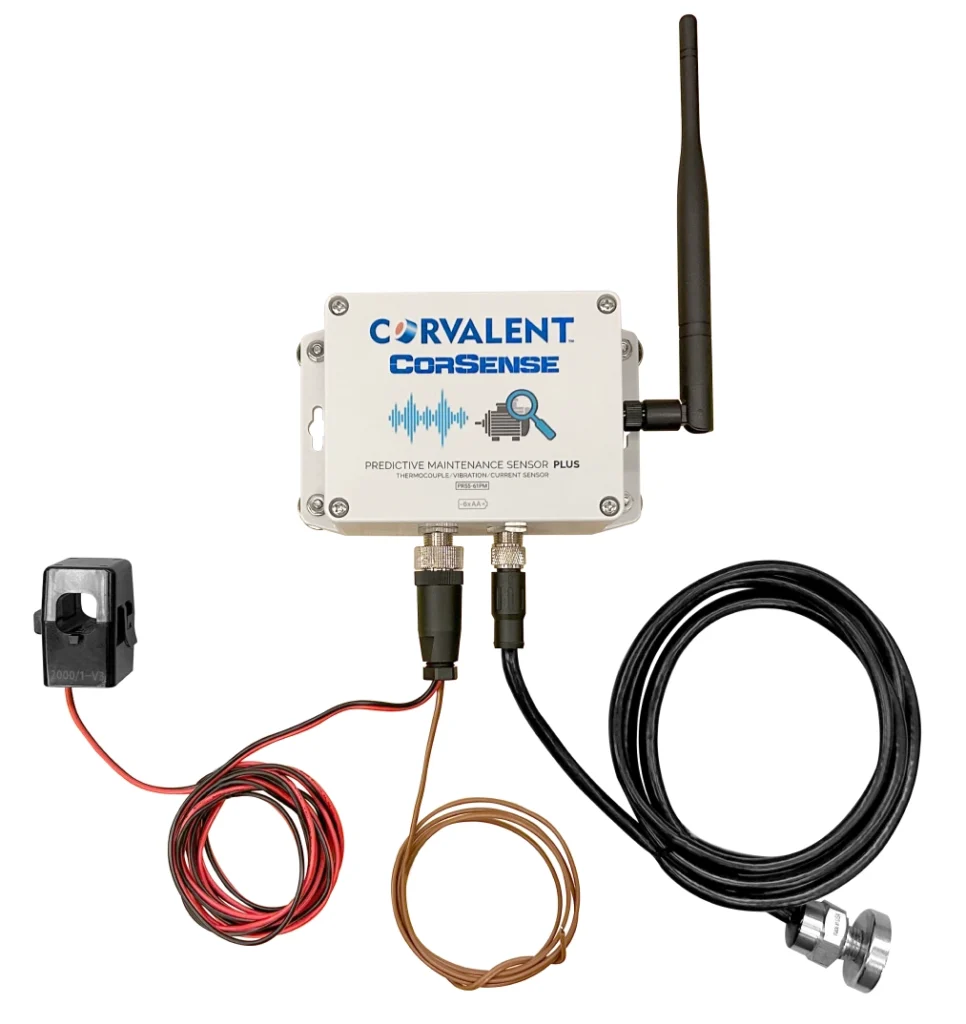

Our IoT Wireless Predictive Maintenance Sensor samples vibration, acceleration, velocity, displacement, frequency, RMS current, and temperature data. After data collection, our sensor will send a fixed user-designed transmission interval over your wireless network. This device comes with a 1.25-meter, split core current sensor, a 2-meter vibration probe (which will also measure machine body temperature), and a 1-meter thermocouple probe that makes installation straightforward.
Characteristics include: Incorporating a 16-bit vibration and temperature sensor. This sensor will transmit highly accurate vibration data at user-defined intervals. These All-In-One Vibration Sensors can send computed and measured data thanks to in-built FFT and also RAW data for further processing on the user end. Using a 3-Axis Sensor as opposed to a 1-Axis (such as Piezo Sensors) users will achieve a much more accurate measurement count and user-friendly process.
Part Number: SY-SNS-NPR55-61PM-PWR
Sensor Highlights
- Industrial-grade IoT wireless predictive maintenance sensor
- High-grade K-type thermocouple connector and probe
- Thermocouple rating of 260°C (500°F) with ±2.2°C accuracy
- AC current range up to 100A RMS measurement
- Calculates RMS and MAX g vibration
- Calculates RMS velocity vibration
- Calculates RMS displacement
- Calculates peak vibration frequency
- Raw time domain data for FFT analysis
- Built-in FFT analysis
- Noise removal using low-pass and high-pass filter
- Frequency range (bandwidth) 1.56Hz ~ 6.4kHz
- Vibration sample rate up to 25.6kHz
- Encrypted communication with 2-mile wireless range
- Vibration probe operating temperature range -40 to +125 °C

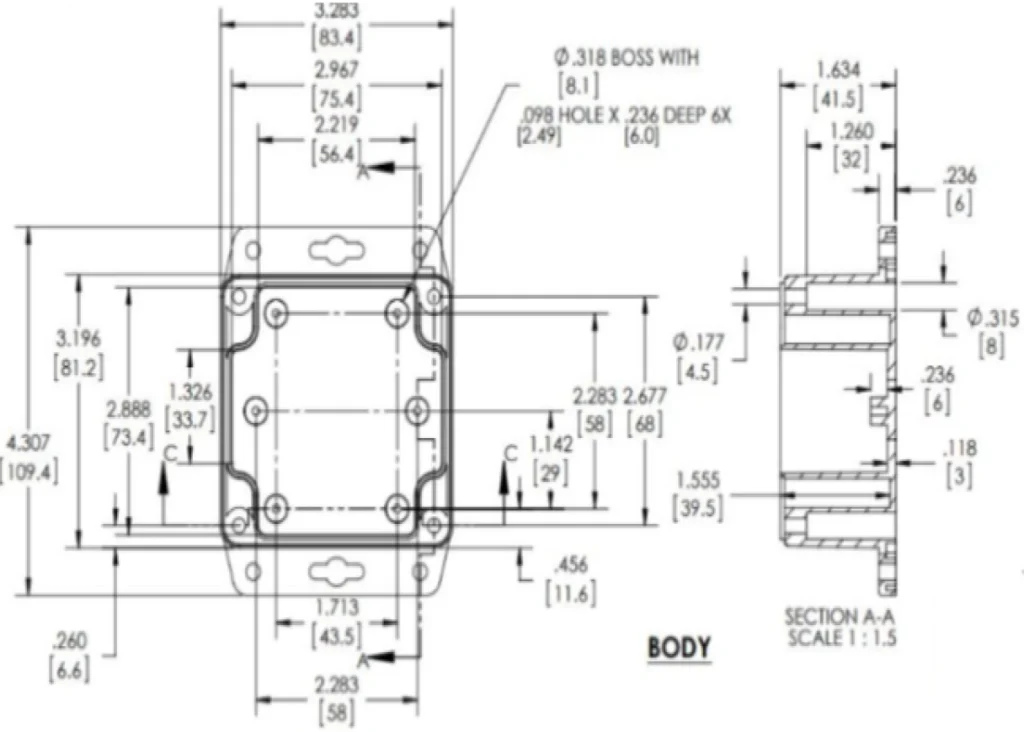

- Wall-mounted or magnet mounted IP65 enclosure
- Vibration sensor with external probe option
- Multiple probe mounting option 1/4 NPT, 1/4-28 UNF, and magnet mount
- Up to 500,000 transmissions from 6 AA batteries
- Many gateway and modem options available
