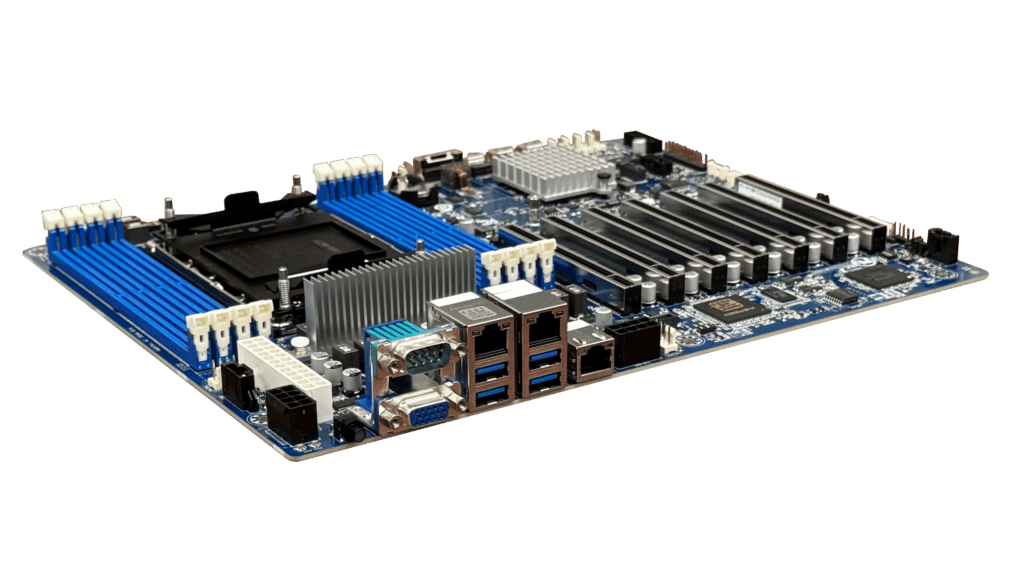

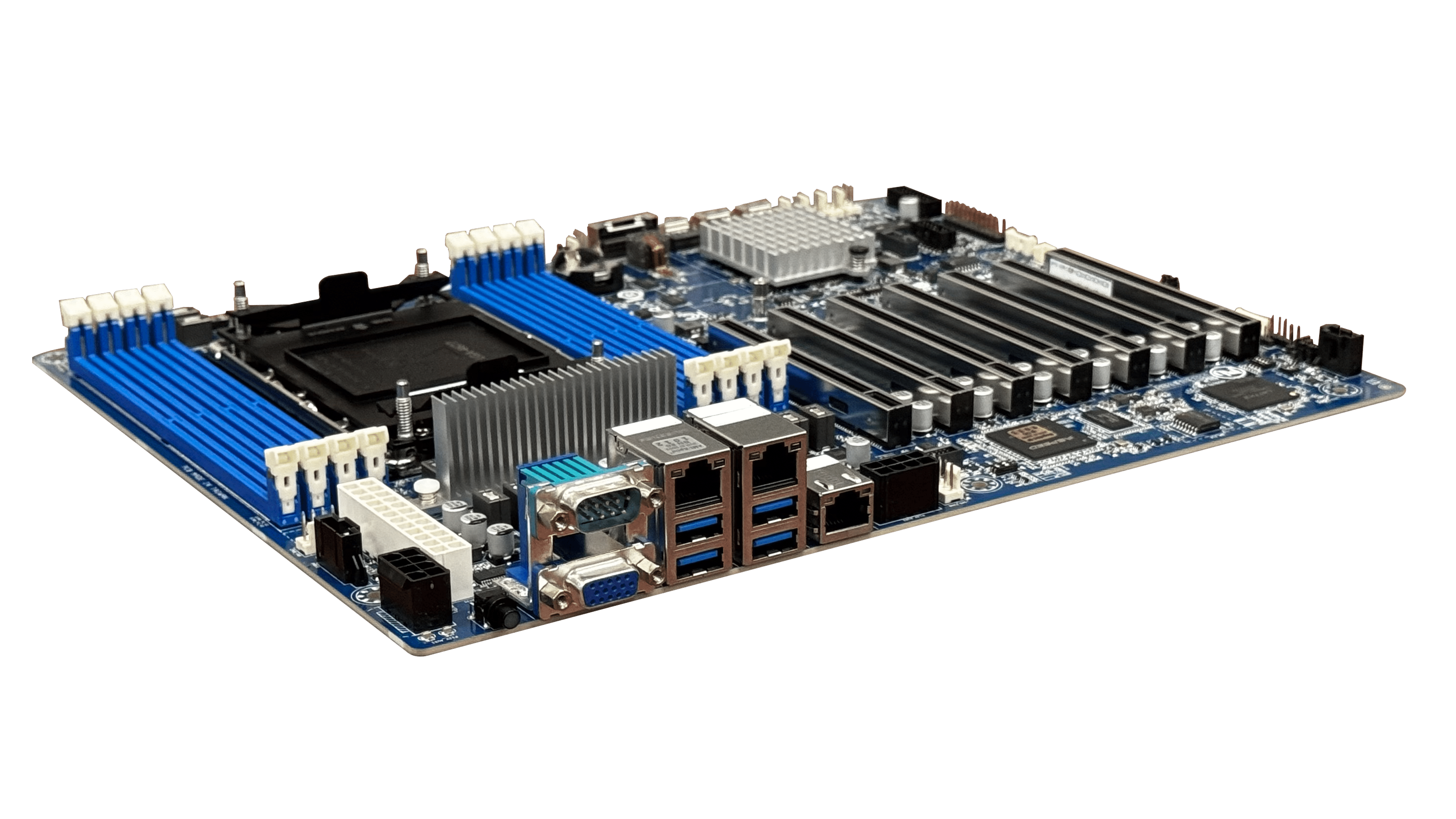

C74AX
Single Intel® 5th/4th Gen Xeon® Scalable Processor, ATX Form Factor
Technical Specifications
The C74AX is based on the Intel C741 chipset. This industrial motherboard supports DDR5, 3DS RDIMM, 4 USB 3.2 Gen., as well as supporting PCIe 5.0 slot. This long-life motherboard is ideal for manufacturing, oil and gas, and other industrial environments, and is built with longevity and performance in mind.
| Form Factor | ATX | 12″ x 9.6″ (305mm x 244mm) |
| Chipset/Processor | Chipset | Intel® C741 Chipset |
| CPU | Intel® 5th Gen Xeon® Scalable Processors | |
| Intel® 4th Gen Xeon® Scalable Processors | ||
| Intel® Xeon® CPU Max Series | ||
| Single processor, TDP up to 350W | ||
| Speed | N/A | |
| TDP | N/A | |
| Core/Threads | N/A | |
| BIOS | BIOS | AMI |
| Expansion Slots | PClex16 | 3 x PCIe x16 (Gen5 x16) slots |
| 2 x PCIe x16 (Gen5 x16 or x8) slots | ||
| 2 x PCIe x16 (Gen5 x8) slots (with bifurcation) | ||
| Memory | DIMM | 8-Channel DDR5 memory, 8 x DIMM slots |
| 3DS RDIMM up to 2TB supported (Total memory) | ||
| Intel® 5th Gen Xeon®: Up to 5600 MT/s | ||
| Intel® 4th Gen Xeon® & Intel Xeon Max Series: Up to 4800 MT/s | ||
| Graphics | VGA | 1 x VGA (Integrated in Aspeed® AST2600) |
| Internal Connectors | USB | 1 x USB 3.2 Gen1 header |
| M.2 | 1 x M.2-M 2280 PCIe 3×4 | |
| Storage | 3 x SlimSAS | |
| Rear I/O | USB | 4 x USB 3.2 Gen1 |
| Video | 1 x VGA | |
| Serial Port | 1 x COM | |
| Ethernet | 2 x RJ45 | |
| 1 x MLAN | ||
| Security | TPM | Optional |
| Watchdog | Programable | 1x |
| Environmental | Operating Temp. | 10~40°C (32~140°F) |
| Non Operating Temp | -40~60°C | |
| Operating Humidity | 8%-80% , non-condensing | |
| Compliance | Certifications | FCC, CE, RoHS (Tested to comply) |
| Ordering | Part Number | C74AX |
