Intel® Q670 Chipset Intel® 12th, 13th and 14th Gen core i3/i5/i7/i9

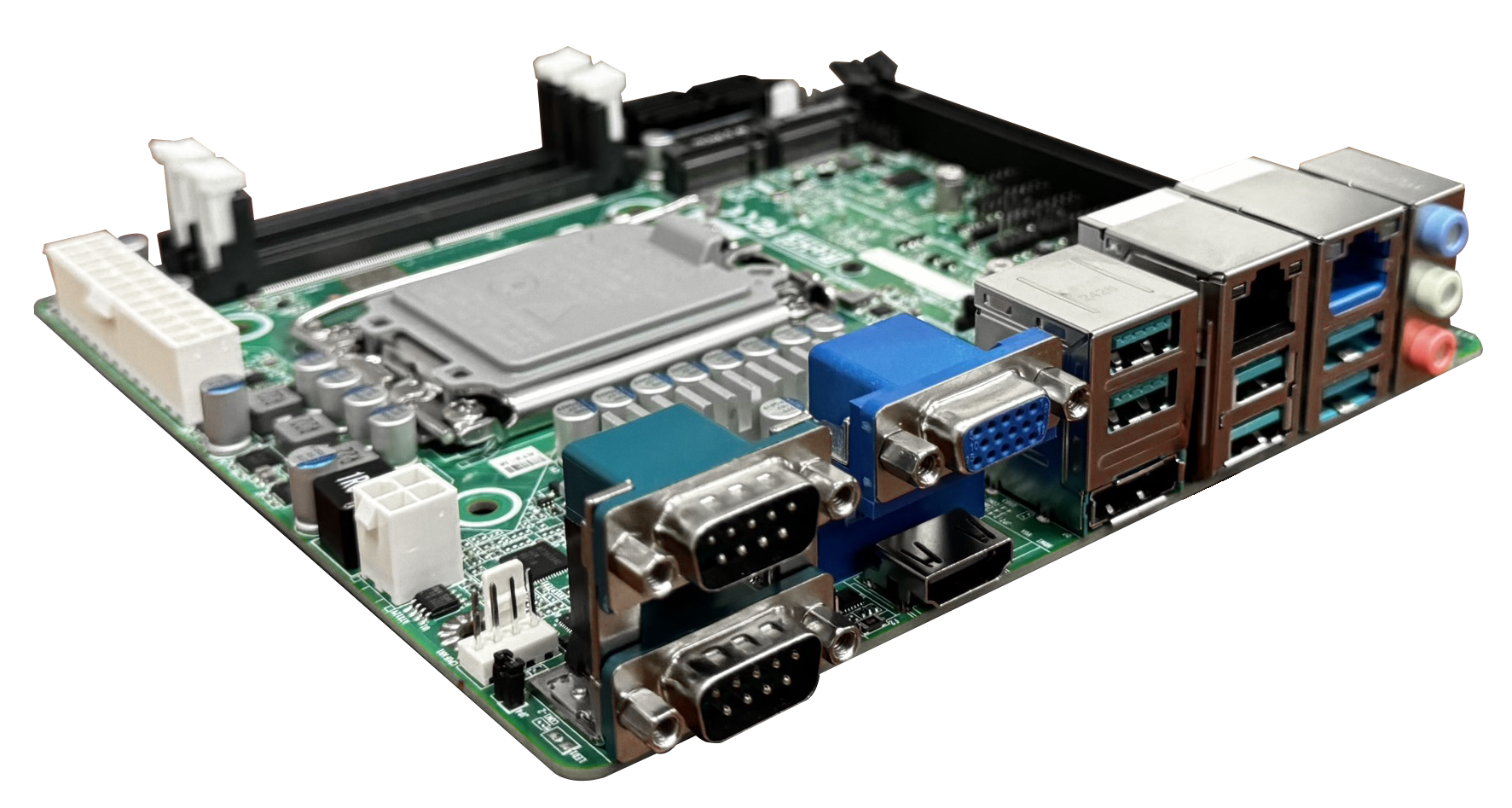

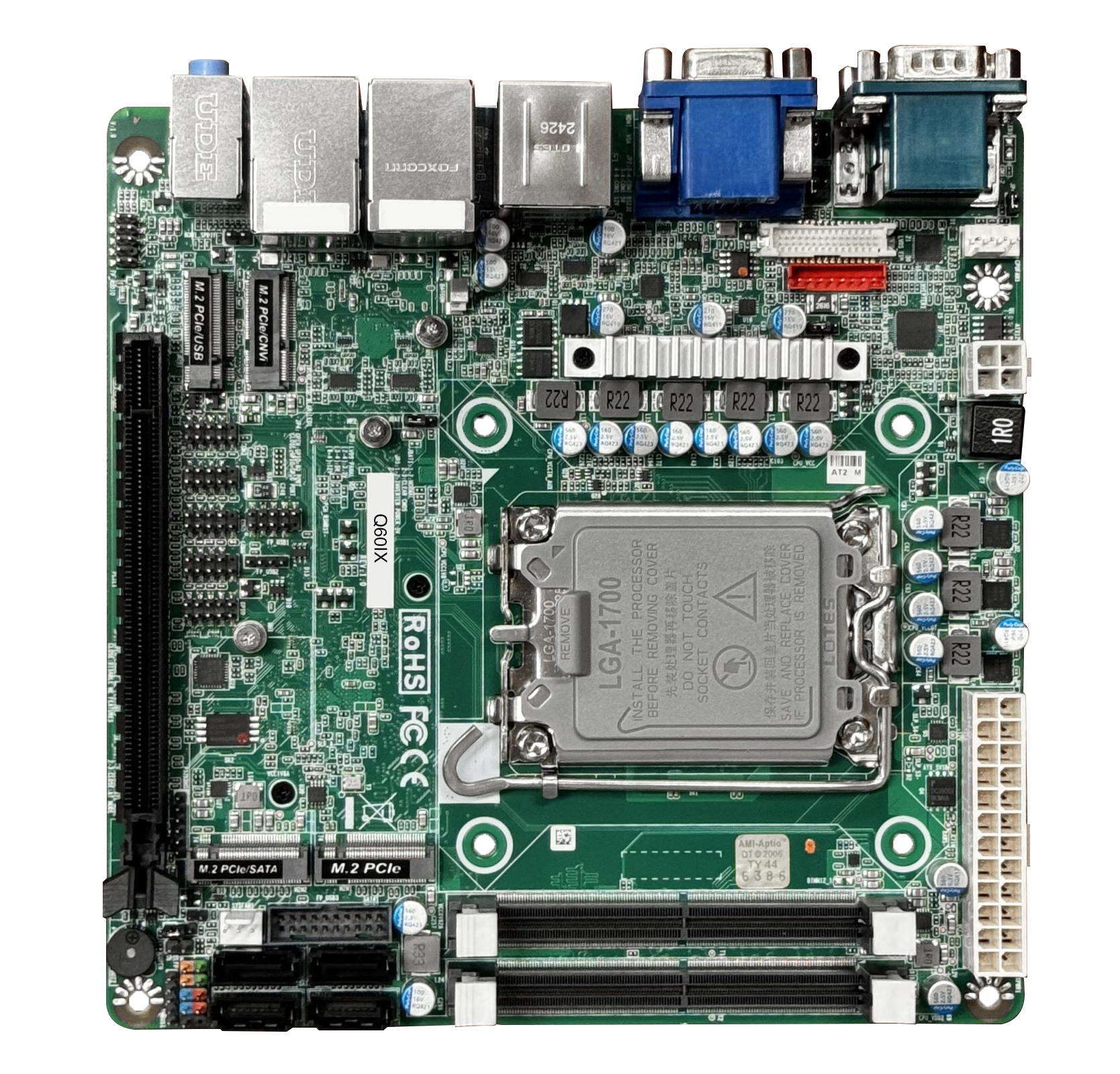

Engineered with precision to meet the rigorous demands of the industrial sector, the Q60IX motherboard redefines standards in data transfer, performance, and durability. With support for DDR5 memory, it delivers high-speed data throughput and exceptional responsiveness. The Q60IX is perfectly suited for use in semiconductor manufacturing, mission-critical systems, and medical applications.
| Form Factor | Mini ITX | 170mm x 170mm (6.7’ x 6.7’) |
|---|---|---|
| Chipset/Processor | Chipset | Intel® Q670 |
| CPU | Intel® 12th, 13th, and 14th Gen core i3/i5/i7/i9 | |
| Speed | N/A | |
| TDP | N/A | |
| Core/Threads | N/A | |
| BIOS | BIOS | AMI® UEFI BIOS |
| Expansion Slots | PCI-Express | 1 x PCIex16 (4.0) (supports bifurcation) |
| Memory | DIMM | 2 x DDR5 5600MHz/4800 MHz SO-DIMM up to 64GB |
| Graphics | VGA | 1 |
| HDMI1 | 1 | |
| DP | 1 | |
| Internal Connectors | USB | 3 x USB 2.0, 1 x USB 3.2 Gen. 1 |
| Audio | 1 x front audio | |
| SATA | 4 x SATA III | |
| M.2 | 1 x M.2-M(2280), 1 x M.2-E (2230), 1 x M.2-B (3042), 1 x M.2-M (2240) | |
| Serial Ports | 4 x RS232 | |
| GPIO | 1 | |
| Power | 1 x 24pin ATX, 1 x 4pin ATX12V | |
| Other | 1 x SMBUS, 2 x PWM fans, 1 x Chassis Intrusion, 1 x LVDS | |
| Rear I/O | USB | 6 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Ethernet | 1 x 1GbE (i219) & 1 x 2.5GbE (i225-V) | |
| Serial Ports | 1 x RS232/422/485, 1 x RS232 | |
| Audio | 1 x microphone jack | |
| 1 x speaker out jack | ||
| 1 x line-in jack | ||
| Power | N/A | |
| Security | TPM 2.0 | NPCT750A |
| Watchdog | Programmable | 10 seconds-255 minutes |
| Environmental | Operating Temp | 0~60°C (32~140°F) |
| Non Operating Temp | -20~85°C | |
| Operating Humidity | 10%-90% relative humidity, non-condensing | |
| Compliance | Certifications | FCC, CE, RoHS, LVD, REACH |
| Ordering | Part Number | Q60IX |
