The CorGrid IoT Gateway is a high-performance, ultra-low-power gateway is engineered for intelligent IoT applications, remote monitoring, and industrial automation. With its compact form factor, powerful processing capabilities, and integrated wireless technologies—including long-range Zigbee—CorGrid offers a plug-and-play solution ideal for both centralized and distributed systems.
Key Features
| Key Features | Ultra Low Power, Small footprint, Plug-and-Play |
| Form Factor & Environment | Dimensions: 85.6 mm × 56.5 mm × 17 mm |
| Operating temperature: 0 °C to 50 °C | |
| Processor & Graphics | CPU: Quad-core ARM Cortex-A72 (64-bit), 1.5 GHz |
| GPU: VideoCore VII | |
| Video support: H.265 (4Kp60), H.264 (1080p60) | |
| Video output: HDMI (standard, 1 port) | |
| Memory | RAM: 8 GB LPDDR4-3200 SDRAM |
| Storage | Primary: microSD card slot for OS and storage |
| External storage via USB 3.0 | |
| AI Accellaration (optional) | Hailo-8 Neural Network Processor |
| Connectivity | Ethernet: 10/100/1000 Mbps |
| Wi-Fi: Dual-band 802.11ac (2.4 GHz and 5.0 GHz) | |
| Bluetooth: 5.0 BLE | |
| Zigbee: Integrated XBee Pro S3B Module | |
| Range: Up to 2 miles (3.2 km) | |

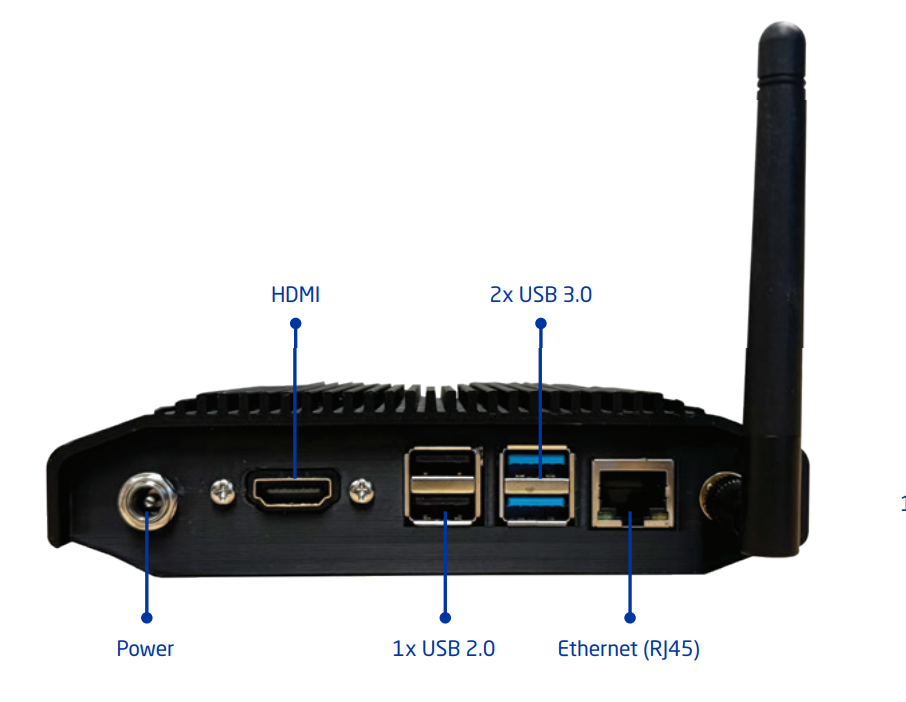

| I/O Interfaces | 2 × USB 3.0 |
| 1 × USB 2.0 | |
| 40-pin GPIO header | |
| CSI camera interface | |
| 1x 4Kp60 HDMI display output | |
| PCIe 3.0 interface | |
| Power | USB-C (5V/3A recommended) |
