Custom 12, 13 and 14th Gen. Industrial Box PC

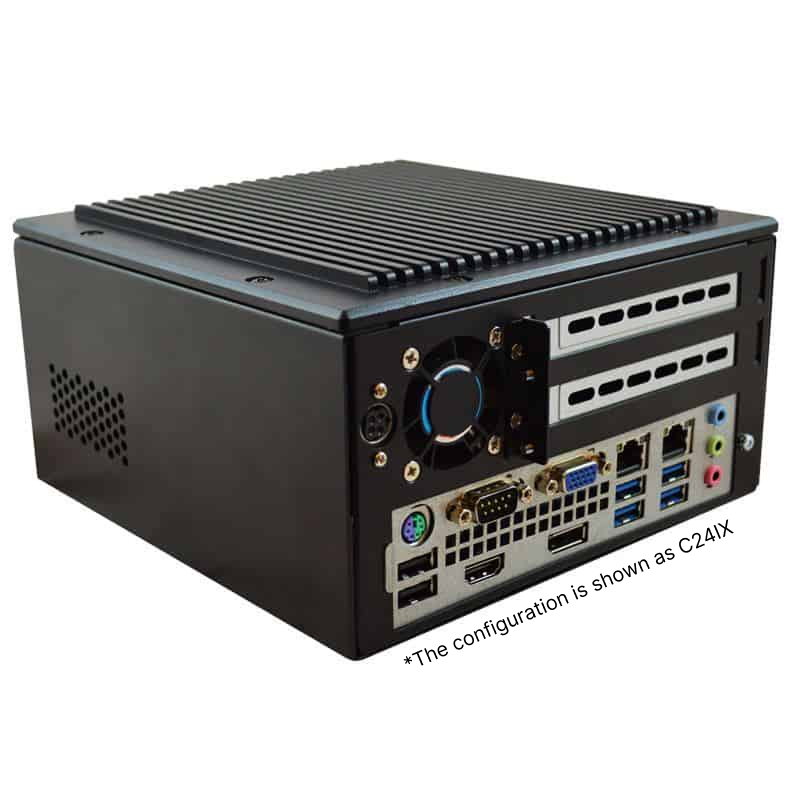

This Custom CorEdge was designed to support all Corvalent Mini-ITX motherboards (we highly recommend pairing with our latest Q60IX or the C24IX Motherboards). The back I/O consists of a 1U I/O gasket, and 2 x expansion slots. The slots can be used for different types of PCIe and PCI cards, or used for I/O expansion (serial ports, etc). DC power is a 4 pin mini-DIN, configurable to a DC power jack, and different input voltages can be selected. A rear 40 x 40 chassis fan is standard.

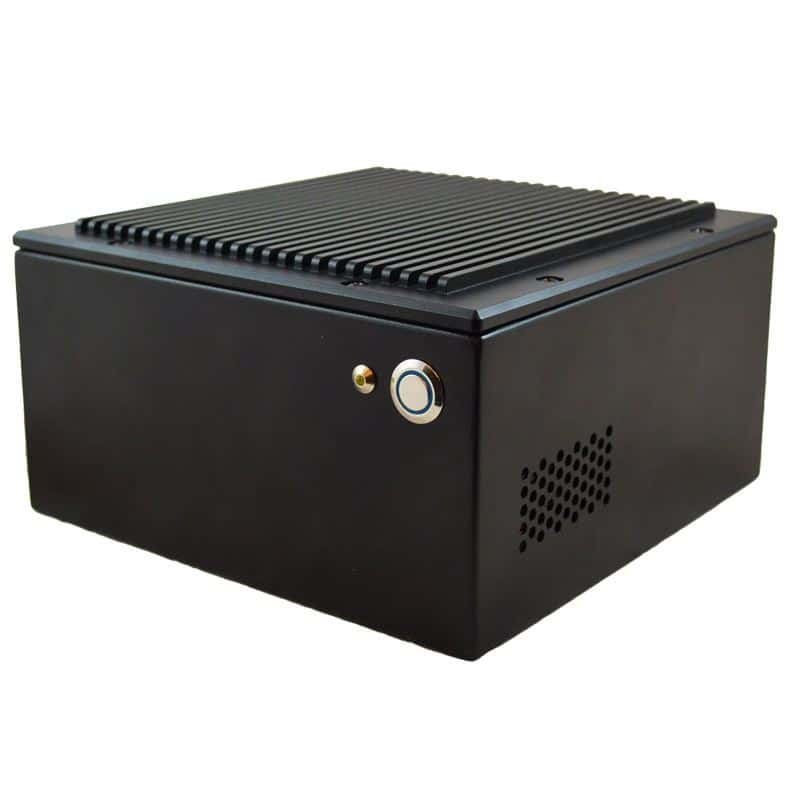

The front panel provides an illuminated power button and a HDD LED (configurable to a SMA antenna connector). The front panel can also be customized to support a slim optical drive, a removable bay, or other custom requirements. The footprint of the box is 7.5” x 7.5” (190mm x 190mm x 102mm) and VESA 100 x 100 with wall mounting options available upon request.
This product can be upgraded with our CoreAI Module for enhanced performance. Powered by the Hailo-8 AI processor, it delivers up to 26 Tera-Operations Per Second (TOPS) with exceptional power efficiency.
| Form Factor | Mini ITX | 170mm x 170mm (6.7’ x 6.7’) |
|---|---|---|
| Chipset/Processor | Chipset | Intel® Q670 |
| CPU | Intel® 12th, 13th, and 14th Gen core i3/i5/i7/i9 | |
| Speed | N/A | |
| TDP | N/A | |
| Core/Threads | N/A | |
| BIOS | BIOS | AMI® UEFI BIOS |
| Expansion Slots | PCI-Express | 1 x PCIex16 (4.0) (supports bifurcation) |
| Memory | DIMM | 2 x DDR5 5600MHz/4800 MHz SO-DIMM up to 64GB |
| Graphics | VGA | 1 |
| HDMI1 | 1 | |
| DP | 1 | |
| Internal Connectors | USB | 3 x USB 2.0, 1 x USB 3.2 Gen. 1 |
| Audio | 1 x front audio | |
| SATA | 4 x SATA III | |
| M.2 | 1 x M.2-M(2280), 1 x M.2-E (2230), 1 x M.2-B (3042), 1 x M.2-M (2240) | |
| Serial Ports | 4 x RS232 | |
| GPIO | 1 | |
| Power | 1 x 24pin ATX, 1 x 4pin ATX12V | |
| Other | 1 x SMBUS, 2 x PWM fans, 1 x Chassis Intrusion, 1 x LVDS | |
| Rear I/O | USB | 6 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Ethernet | 1 x 1GbE (i219) & 1 x 2.5GbE (i225-V) | |
| Serial Ports | 1 x RS232/422/485, 1 x RS232 | |
| Audio | 1 x microphone jack | |
| 1 x speaker out jack | ||
| 1 x line-in jack | ||
| Power | N/A | |
| Security | TPM 2.0 | NPCT750A |
| Watchdog | Programmable | 10 seconds-255 minutes |
| Environmental | Operating Temp | 0~60°C (32~140°F) |
| Non Operating Temp | -20~85°C | |
| Operating Humidity | 10%-90% relative humidity, non-condensing | |
| Compliance | Certifications | FCC, CE, RoHS, LVD, REACH |
| Ordering | Part Number | Q60IX |
