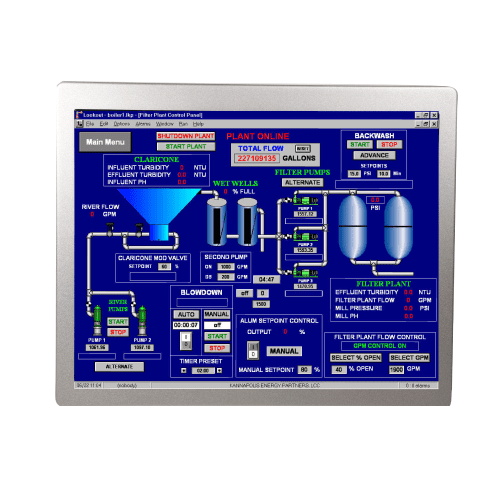

VISIO PPC-17RES
Industrial Panel PC with Touch Screen
Technical Specifications
The VISIO PPC-17RES is a rugged industrial panel PC system. This 17″ resistive touchscreen display supports an SXGA (1280 x 1024) color LCD with LED backlight. The aluminum front bezel is IP66 (IP66) rated and the system can operate in 90% humidity and withstand up to 65° C (w/SSD), making it an ideal display for humid or industrial environments. The PPC’s engine is the Corvalent Industrial motherboard C24IX, a mini-ITX supporting 8th and 9th Gen Coffee Lake Intel® microprocessors. This is the ideal PC for high-traffic use or potentially harsh environments, such as an outdoor public terminal, or electronic interface in the Oil / Gas, Security, or Industrial Automation sectors.
| Weather Resistant | IP66, front panel |
|---|---|
| Impact Resistance | IK05, front panel |
| Form Factor
W x H | 16.7” x 13.9”
(426.2mm x 358.6 mm) |
| Panel Cut Size
W x H | 15.4”” x 12.5” (392 mm x 319 mm) |
| LCD Screen / Color Saturation | 17″, 1280×1024 TFT LCD
80% NTSC |
| Viewing Angle (H/V) | 170 /160 degrees |
| Contrast Ratio | 1000:1 typical |
| Response Time | 5 milliseconds |
| LCD Brightness | 350 cd/m2 typical |
| Touch Screen | Full Flat resistive, single touch |
| Light Transmission | 80±5% |
| Lifetime / Hardness | 30,000 hrs. / 3H |
| VESA Mounting | 75mm x 75mm |
| Board / Form Factor | Corvalent C24IX / Mini-ITX 6.7” x 6.7” (170mm x 170mm) |
| Microprocessor | 8th & 9th Gen Intel® Coffee Lake & Xeon |
| Chipset | Intel® C246 |
| BIOS | AMI® UEFI BIOS |
| Memory | Dual Channel DDR4 (2666MHz), ECC or non ECC SO-DIMMS, up to 64GB |
| PCI-E x 16 | BIOS selectable to 1 PCIe x16 or 2 PCIe x8, using a bifurcation riser card |
| M.2 | 1x 2280 M-Key SATA and NVMe
1x 2230 E-Key |
| HDD Interface | 2x SATA III with RAID 0/1 (cable-less SATA DOM support) |
| USB 2.0 | 2x internal and 2x external |
| USB 3.1 Gen1 | 2x external |
| USB 3.1 Gen2 | 2x external |
| Serial Ports | 2x external, 1x internal. |
| Video Graphics | 2x DP++, 1x VGA |
| TPM | 2.0 |
| Ethernet | Intel® i219LM + Intel® i211AT |
| Audio | Realtek ALC888 6ch audio (SPDIF) Three (3) 3.5mm audio ports (Line Out, Line In, Mic In) |
| Industrial Devices | Hardware temperature monitoring, voltage sensing, watchdog timer |
| Input Power | Display: 19VDC via 150W power brick (included) |
| Mounting Clips | Included |
| Battery | Removable lithium battery for CMOS memory |
| Operating Temp | 0°C to 50°C |
| Non-Operating Temp | -20°C to 65 °C |
| Operating Humidity | 10 to 90% non-condensing |
| Non-Operating Humidity | 10 to 90% non-condensing |
| Warranty | Standard 1 Year Parts & Labor |
| Compliance | FCC, CE, RoHS, IP66 and IK05 |
*Configured with Corvalent Industrial Motherboard C24IX
