CorServer AI C74 20” 4U
The W89AX is based on the Intel® W890 chipset and supports Intel® Xeon®600 processors, up to
2TB of DDR5 RDIMM memory, five PCIe 5.0 x16 slots, and three M.2 PCIe 4.0 drives.
Technical Specifications
Empower your AI initiatives with the CorServer AI, a versatile platform engineered to integrate Hailo AI acceleration and NVIDIA GPU technology. With a guaranteed 7-year life cycle, Corvalent provides the hardware longevity needed to align your industrial AI deployments with long-term company growth and performance goals.
Specifications:
| Dimensions | 4U, 483mm x 177 x 510mm, 19” x 7.0” x 20.1” |
| Construction | Heavy Duty Cold Rolled Steel |
| Air Filter | Replaceable & Washable |
| Power Supply | 700W Single (redundant and higher power available) |
| Chipset | Intel® C741 chipset |
| CPU | Intel® Xeon® 4514Y, 16 core/32 thread (4th & 5th Gen Scalable Processors options) |
| Memory | 512GB ECC RDIMM – upgradable to 2TB |
| Expansion Slots | Up to 5 PCIe x16 Gen5, or 3PCIe x16 Gen5 and 4 PCIe x8 Gen5 with bifurcation |
| Front I/O | 2x USB 3.2 Gen1 |

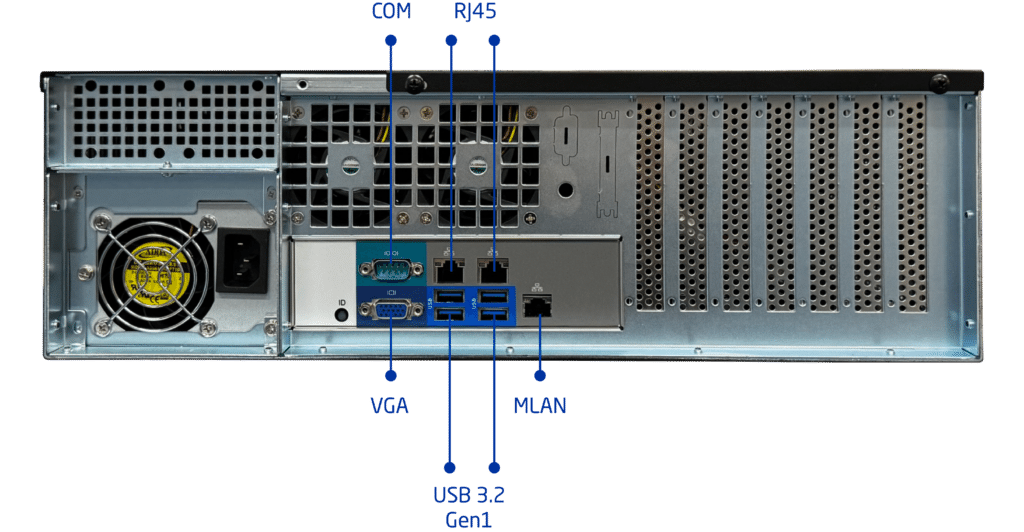

| Rear I/O | 4 x USB 3.2 Gen1 1 x VGA 1 x COM 2 x RJ45 (1GbE) 1 x MLAN (Management port) 1 x 500GB M.2-M NVMe |
| Security | 1 x TPM2.0 |
| AI Support | 1x Hailo-8 module (26 TOPS) 1x Hailo-8 add-on card (104 TOPS and above) 1x GPU RTX6000 Pro Nvidia Blackwell – options available |
| Operating Systems | Windows 11 IoT Enterprise LTSC 2024 and LINUX. Other operating systems available upon request. OS Installation service including drivers, activation, customization, image creation, cloning, including intehgrationwith customer application. |
| Operating Temp | 0°C to 60°C (Motherboard) |
| Non-Operating Temp | -40°C to 75°C (Motherboard) |
| Operating Humidity | 5 to 90% non-condensing (Motherboard) |
| Non-Operating Humidity | 5 to 95% non-condensing (Motherboard) |
| Compliance | FCC, CE, RoHS (Designed to comply) |
| Testing | 100% Functional and Burn-in Test. Customized testing |
| Part Number | N/A |
| Warranty | 1 year warranty on parts, labor and free technical support. Extended warranty up to 3 years upon maintenance and system monitoring contract for premium post sale support. See customer service for more information |
