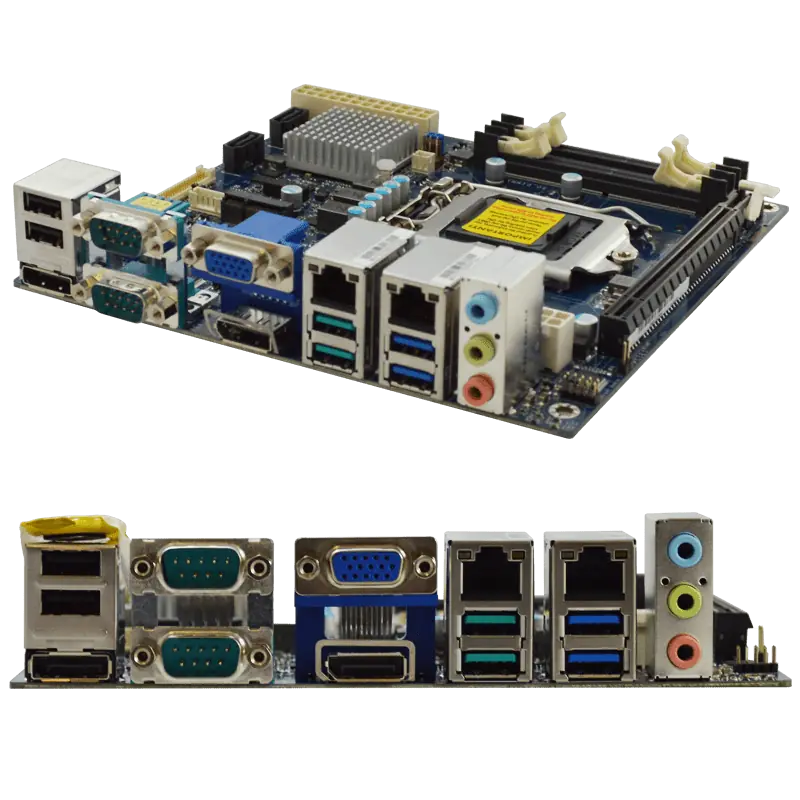

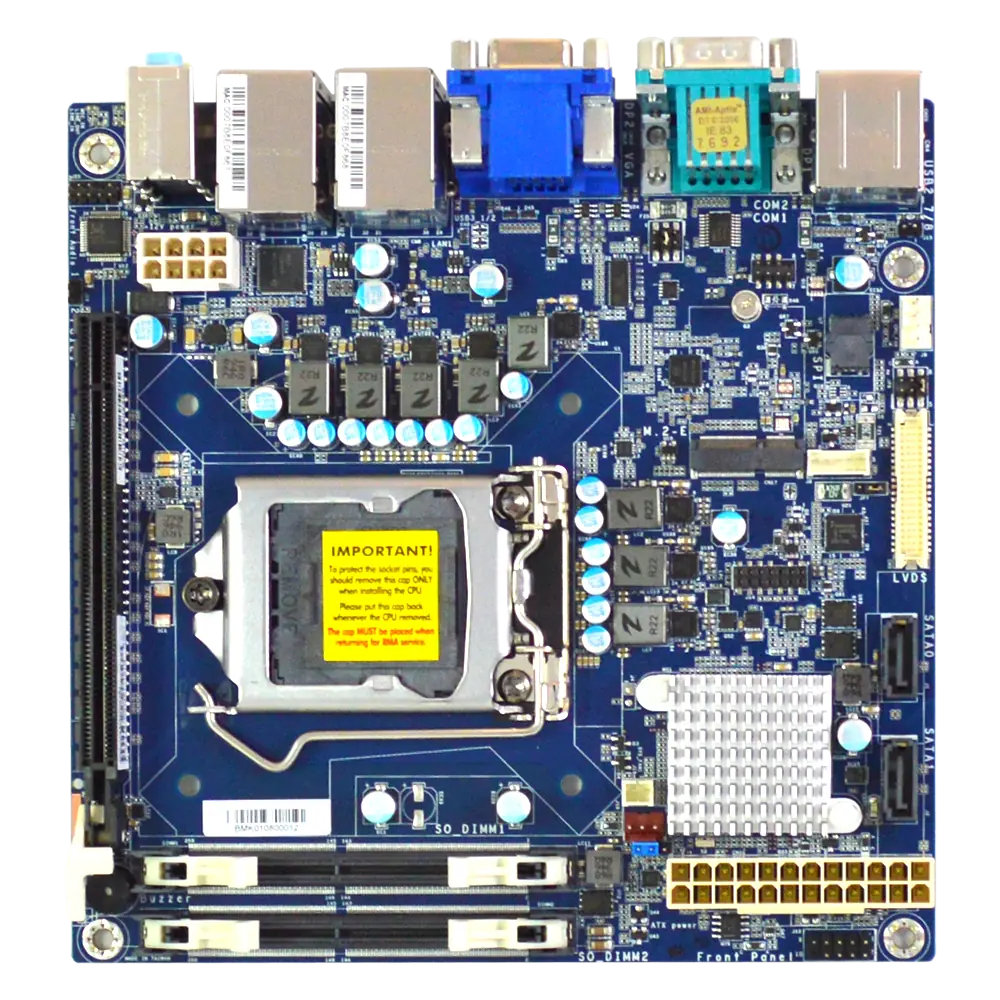

C24IX
Intel 8th/9th gen, C246 chipset, with 6 USB, mini ATX
Technical Specifications
| Form Factor | Mini ITX 6.7” x 6.7” (170mm x 170mm) |
| Processor | 8th & 9th Gen Intel® Coffee Lake & Xeon (8 core support!) |
| Chipset | Intel® C246 (Q370 available upon request) |
| BIOS | AMI® UEFI BIOS |
| CPU PIN COUNT | 1151 |
| PCIe x16 | BIOS selectable to 1 PCIe x16 or 2 PCIe x8, using a bifurcation riser card |
| M.2 | 2280 M-Key (SATA & NVMe) 2230 E-Key |
| Memory | Dual Channel DDR4 (2666MHz), ECC or non ECC SO-DIMMS, up to 64GB |
| USB 2.0 | 2 x EXT, 2 x INT |
| USB 3.1 Gen1 | 2 x EXT |
| USB 3.1 Gen2 | 2 x EXT |
| SATA | 2 x SATA III + RAID 0/1 + RST (cable-less SATA DOM support) |
| COM | 2 x EXT, 1 x INT |
| DP++ | 2 |
| VGA | 1 |
| LVDS | 1 |
| Audio | Realtek HD Audio |
| Ethernet | Intel® i219LM + Intel® i211AT |
| TPM | 2 |
| Watchdog | Yes |
| Power | ATX & +12V |
| Operating Temp | 0°C to 60°C |
| Non Operating Temp | -40°C to 85°C |
| Operating Humidity | 5 to 90% non-condensing |
| Non Operating Humidity | 5 to 95% non-condensing |
| Compliance | FCC, CE, RoHS |
| Certifications |  |
| Part Number | C24IX |
