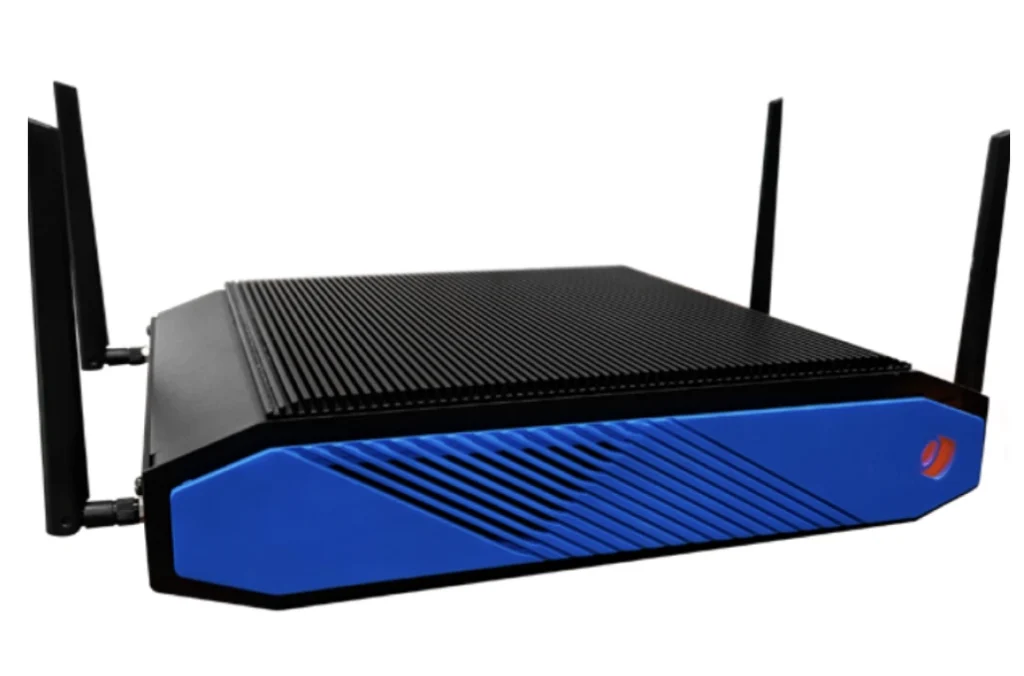

CorGrid IoT Edge
Full Edge Computer, powered by Intel® i3 8100Tprocessor
Technical Specifications
Introducing our Industrial IoT Edge, CorGrid, a full Edge Computer, powered by Intel® i3 8100T processor, offering DDR4 memory support of 32GB and PCIe expandability. With Digi Xbee Pro Zigbee radio module and antenna for seamless communication, and Combo WiFi / Bluetooth 5.0 module for versatile connectivity, it’s compatible with Windows 10 IoT Enterprise LTSC, Windows 11, Linux Ubuntu, or Debian, ensuring unmatched performance, connectivity, and compatibility for your industrial IoT needs.
| Processor | CPU | Intel® i3 8100T (35Watt) |
| Enclosure | Fanless / Low Noise | Dimensions – 13″ W x 11″ D x 2.5″ H |
| Memory | DIMM | Dual channel support, with ECC or non-ECC U-DIMMs 32GB |
| Storage | Solid State | Server-class SSD solid-state disk with a minimum capacity of 128GB |
| Cloud Storage | Platform | Microsoft Azure, Google Cloud, AWS Cloud, Corvalent Cloud |
| Database Management | Protocol | Oracle, MySQL, SQL Server, SQLLite, MongoDB, Cassandra |
| System | Operating System | Compatible with LINUX and MS Windows operating system, including Windows 10 IoT enterprise LTSC, Windows 11, Ubuntu Standard and Real Time, iOS, Red Hat Certified |
| Mounting Type | It can be wall mount when necessarry, with LED light for easy visualization | |
| Dimensions | 13″ W x 11″ D x 2.5″ H | |
| Communication | Wi-Fi | Combo Wi-Fi/ BT5.0 (BLE) module with 2 antennas |
| Cellular | 5G, 4G, 3G, 2G | |
| ZigBee | Digi Xbee Pro Zigbee radio module and antenna, connected via internal USB 2.0 port | |
| Other | LoRa, NB-IoT, Satelite, RS485, RS-422 and 4-20ma | |
| Internal Connectors | USB | Up to 6USB 2.0 and 3.0 |
| Video | VGA, Dual DP | |
| M.2 | 1 x M.2-2230 E-Key, 1 x M.2-2280 M-Key | |
| Serial Ports | 2 standard | |
| Ethernet | Dual Ethernet ports (1Gbit), Ether CAT capable | |
| Security | TPM2.0 | Infineon SLB9665 |
| Environmental | Operating Temp. | 0~60°C (32~140°F) |
| Non Operating Temp. | -40~75°C | |
| Operating Humidity | 0%-90% relative humidity, non-condensing | |
| Compliance | Certifications | FCC, CE, RoHS |
| Warranty | Standard | 1-year manufacturer warranty. Optional extended warranty available |
| Ordering | Part Number | TBD |
Product Highlights:
- lntel® i3 8100T
- Support Digi Xbee Pro Zigbee radio module
- Combo WiFi / Bluetooth 5.0 Module
- Compatible with Windows 10 and IoT Enterprise LTSC, Windows 11, Linux Ubuntu
- Communication Support – ZigBee, Digi Xbee pro Zigbee, LoRa, NB-IoT, Satelite and more
- Database Management protocols – Oracle, MySQL, SQL Server, SQLLite, MongoDB, Cassandra
- Encryption SHA-256 Support
- Red Hat Certified
